6000LPH RO System
KAI YUAN
6000LPH Reverse Osmosis Machine
Product Description
Reverse Osmosis System:
Osmosis is a naturally move from a solution having a lower concentration (fresh water) to one with a higher concentration (seawater) through a process called osmosis. When a liquid moves between membranes in the opposite directions, this is known as reverse osmosis.
After the raw water has gone through the pretreatment system, reverse osmosis equipment uses a high-pressure pump to pressurize the high-salinity solution side. A reverse osmosis membrane (RO membrane) with a pore size of 1/10000μm is then used to force water molecules in a higher concentration (like seawater) to flow through the membrane in the opposite direction from the lower concentration (fresh water) side. Ultimately, it is split into higher-concentration water for discharge or use and extremely low-concentration water (clean water) for usage.
At the same time, Reverse osmosis equipment removes large particles, suspended matter, colloids, organic matter, taste, bacteria, viruses, heavy metal ions and other harmful substances in the water and 99% of dissolved salts. The system desalination is as high as 97% or more, and the conductivity of the outlet water reaches ≤10μs/cm.
Product Processing

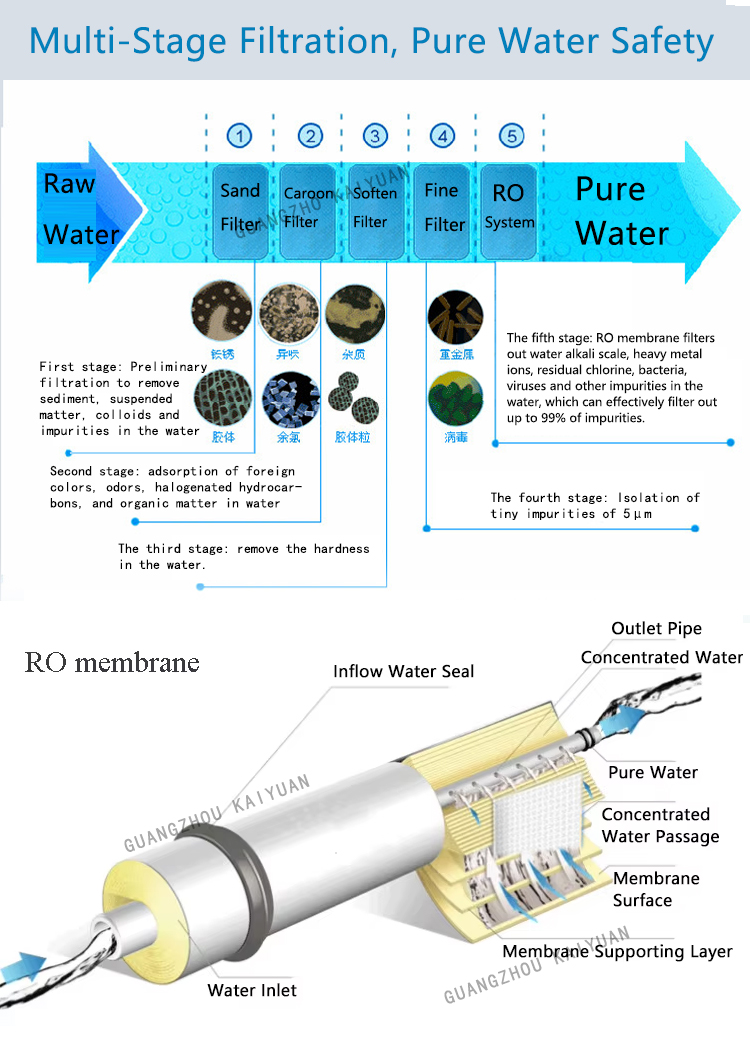

| Process: raw water tank(buyer supply)→ raw water pump→quartz sand filter →activated carbon filter→security filter→1st high pressure pump→1st ro system→2nd high pressure pump→2nd ro system→pure water tank(buyer provided)+UV sterilizer(ozone generator) +water supply point | ||||
| Item | Commodity name | Description/Application | Model | Material |
| 1 | Raw water tank | ①To store raw water ②Buffering effect, (with peak water consumption, water shutdown stage) | 0.25m³~50m³ | ①PE ②Fiber Reinforced Plastic ③Stainless steel SUS-304 SUS-316 ④Carbon steel |
| 2 | Raw water pump | To provide pressure for the raw water pretreatment system (such as quartz sand filter, activated carbon filter, water softener, security filter, etc.). | GRUNDFOS CNP Lingxiao | ①Stainless steel 304 ②Stainless steel 316 (For brackish water or customer requirements ) |
| 3 | Iron and manganese removal filter | Before/after the quartz sand filter, It mainly depends on the raw water impurities | Φ250×H1400 Φ330×H1400 Φ600×H1900 | ①Fiber Reinforced Plastic ②Stainless steel SUS-304 SUS-316 |
| 4 | Quartz sand filter | To remove large particulate matter, suspended solids, dust, sediment, algae, etc. in the water (rough sand at the bottom, fine sand in the middle) | Φ250×H1400 Φ330×H1400 Φ600×H1900 | ①Fiber Reinforced Plastic ②Stainless steel SUS-304 SUS-316 ③Carbon steel |
| 5 | Activated carbon filter/carbon filter | Remove residual chlorine, organic matter, taste, bacteria in the water, and reduce the turbidity of the water (coarse sand at the bottom, activated carbon in the middle) | Φ250×H1400 Φ330×H1400 Φ600×H1900 | ①Fiber Reinforced Plastic ②Stainless steel SUS-304 SUS-316 |
| 6 | Water softener | Let the cation resin adsorb Ca2+ and Mg2+ions in the water (the "scale" that produces precipitation), reduce the hardness in the water, and prevent the scale from precipitating in pipes, containers, boilers and other equipment | Φ250×H1400 Φ330×H1400 Φ600×H1900 | ①Fiber Reinforced Plastic ②Stainless steel SUS-304 SUS-316 |
| 7 | Security Filter | It can intercept and remove impurity particles with a particle size greater than 5μm (5μm for conventional filter elements, minimum 1μm) | 10“×5μm 20“×5μm 30“×5μm 40“×5μm | ①U-PVC Fiber Reinforced Plastic ②Stainless steel SUS-304 SUS-316 |
| 8 | High-pressure pump | To provide pressure for reverse osmosis systems | GRUNDFOS CNP | Stainless steel SUS-304 SUS-316 |
| 9 | Reverse Osmosis System | Mainly remove TDS in water, but also remove bacteria, viruses and other harmful substances | DuPont Vontron Toray Hydranaut | ①Fiber Reinforced Plastic ②Stainless steel SUS-304 SUS-316 |
10 | Pure water tank | ①To store pure water | 0.25m³~50m³ | ①PE ②Fiber Reinforced Plastic ③Stainless steel SUS-304 SUS-316 ④Carbon steel |
We recommend purchasing 1 to 2 years' worth of PP filter cartridges along with the machine, as these cartridges need to be replaced every month.
Treated water:
| Power industry: | boiler water |
| Electronics industry: | semiconductor industry ultra pure water. integrated circuit cleaning water. |
| Beverage industry: | formulation of water, production water, washing water. |
| Pharmaceutical industry: | process water, reagent water, washing water, water injection, drug concentration and separation. |
| Chemical industry: | the production of water, waste water treatment, the value of the separation of substances. |
| Drinking water project: | the preparation of pure water, drinking water purification. |
| Petroleum and chemical industry: | advanced treatment of oilfield injected water and petrochemical wastewater. |
| Sea water desalination: | Sea Island, coastal water shortage areas. ships, sea water and other production and living water. |
Company Information
Guangzhou KaiYuan Water Treatment Equipment Co.,Ltd was established in 2008. It is executive director unit of China Water Enterprises Confederation Desalination Branch and member of MIAC(China Membrane Industry Association). Our company is IS09001:2015 certified company andour products are approved CE and SGS.
We are 16 years full experience in pure water treatment equipment manufacturer. We has been engaged in water treatment product and technology development and utilization. We are specialized in manufacturing reverse osmosis(RO)system seawater desalination system, ultrapure water system, pure water system for GMP medical andpharmaceutical, Nanofiltration system(NF), Ultrafiltration system(UF), Micron filtration system(MF), lon exchange system, EDl systems etc.
We can provide water treatment project design, manufacture, installation and all-round service. Our products are sold well not only in domestic, but also in morethan 90 countries all over the world. Welcome customers from all over the world to visit us.
Input Your Owned Water, Output Your Needed Wate
Build win-win relationship with client, staff and supplier.
Our customers are located in more than 120 countries around the europe, africa, the middle east and asian countries, and more thanworld. products are exported to south america, north america,2,000 domestic customers.
Delivery time: Around 1-7 working days for small machine, 15-45 working days for big machine (depending on raw material availability)
Export standard packing: Carton/wooden case (plywood), no fumigation required, suitable for shipping.
User Manuals: Available in both paper and electronic formats to ensure customers have easy access to instructions and information.
Packaging: The machine is carefully assembled and then wrapped in protective film to prevent any wear or damage during transit.
Shipping and After-Sales Service: The product is packaged in a wooden case for additional protection. Customers are offered a 1-year after-sales service, which can provide peace of mind regarding the quality and support for the product.
Transportation: Goods are loaded into containers at the factory before being dispatched to their destination, ensuring secure and efficient transport.
FAQ
Q: What is the guarantee and after-sale service that Kai Yuan Company can provide?
A: It is a one-year guarantee (except for damage caused by human error).
Any issues with accessories, such as valves, pumps, etc., within one year, we can deliver replacements to you for free.
Q. Is the machine/equipment difficult to install?
A: Kai Yuan factory connects and adjusts the machine well before delivery, and we will provide a comprehensive "User Manual" for the entire system. If needed, we can also provide a video on how to operate the machine.
Q. Will Kai Yuan help customers install the machine in their country?
A: Additionally, Kai Yuan can send engineers to the customer's location to install the equipment and train staff, but the buyer must cover the relevant costs for our workers.
Q. How is the machine packed? Is it suitable for shipment?
A: The machine will be packed in a standard wooden case, making it suitable for shipment. After you receive the machine, you can open the wooden case to remove the machine.
Q. What information do I need to provide to obtain the suitable RO machine or other relevant products I want?
A: It would be helpful if you could provide us with a raw water analysis or water test report.
Q:What is the difference between UF and RO membrane ?
A: Reverse osmosis and ultrafiltration, commonly referred to as RO and UF, use membrane technology. The reverse osmosis system uses a semipermeable membrane that separates 99.99% of inorganic dissolved material from the water molecule. The ultrafiltration system uses a hollow fibre membrane to stop solid debris and microscopic contaminants. UF is a mechanical filter, but it can filter water down to the superfine level of 0.01 micron, hence the name ultrafiltration. Ultrafiltration is a filter system, while reverse osmosis is a process where molecules are separated.
