KYEDI-5000L/H
KAIYUAN
Product Description

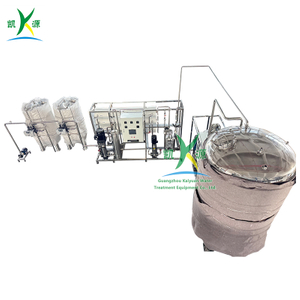

The 5000L/H Double Stage EDI Deionized Water System is engineered for industrial applications requiring consistent and high-quality ultrapure water. The EDI technology uses an electrical current to separate ions from water, regenerating the ion exchange media continuously, which makes it both cost-effective and environmentally friendly. This system eliminates the need for hazardous chemicals and reduces maintenance costs associated with traditional ion-exchange methods.
The system is equipped with a two-stage RO system, where the RO membrane's desalting rate reaches 97% or higher, ensuring effective removal of up to 99% of ions and other dissolved impurities. The water then moves through the EDI system, which further purifies it by removing ionized and ionizable species, making it suitable for applications that require ultrapure water with resistivity values exceeding 5MΩ.cm.
Advanced EDI Technology: EDI provides continuous regeneration of the ion-exchange media, eliminating the need for chemicals, which makes the system environmentally friendly and reduces operational costs.
Double Stage RO System: The integrated double stage reverse osmosis system ensures high desalting rates and removes over 99% of ions and contaminants, ensuring pure, high-quality water.
Chemical-Free Process: Unlike traditional deionization systems, the EDI system uses electricity instead of chemicals for regeneration, reducing environmental impact and lowering operational costs.
Pharmaceutical Industry: Provides ultrapure water for drug manufacturing, meeting stringent quality standards.
Medical Applications: Used in hospitals and medical facilities for sterilization, dialysis, and other critical medical processes that require high-purity water.
Power and Energy Industry: Ideal for boiler feed water treatment and other energy-related applications where high-purity water is essential for operational efficiency.
Model | KYEDI-5000L |
Production capacity | 5000 Liter/hour |
| Power supply | AC 380 50HZ (Customized) |
Quartz sand filter, activated carbon fitler | SUS304 material ; Automatic control valve |
| Weight | 3000KG |
| MOQ | 1 set/shipment |
Function of every part:
1.Raw water pump | provide the pressure to quartz sand filter/active carbon filter/ water softener |
| 2.Quartz Sand filter | get rid of turbidity, suspended matter |
| 3.Active Carbon filter | remove the color, free chloride, organic matter, harmful matter, ect. |
| 4.Water Softener filter | exchange "ions" of calcium and magnesium with the most common and easiest method |
| 5.Security filter | prevent large particles into RO membrane, accuracy is 5um |
| 6.High pressure pump | provide the high pressure to RO membrane |
| 7.RO system | main part of the plant. The RO membrane's desalting rate can reach 97% and above, removing over 99% ion |
| 8.EDI system | utilizes an applied current to remove ionized and ionizable species from a water source while continuously regenerating the ion exchange media |
Q1: How does the EDI system work?
A1: The Electrodeionization (EDI) system uses an electrical current to remove ionized substances from water while continuously regenerating the ion exchange media, providing a chemical-free, continuous purification process.
Why choose us?
Q2: What maintenance is required for the system?
A2: Routine maintenance includes replacing consumables like filters and monitoring the system’s performance. The system is designed for low maintenance and includes automatic control features to minimize manual intervention.
With over 12 years of expertise in the water treatment industry, we are leaders in providing cutting-edge EDI and RO-based systems, ensuring consistent production of high-quality water. Our systems are designed for durability and reliability, constructed with SUS304/SUS316 stainless steel to withstand harsh industrial environments, guaranteeing long-term performance. Whether for pharmaceutical, medical, or energy sectors, we deliver sustainable, low-maintenance solutions that meet the most demanding water quality standards, backed by a commitment to excellence and customer satisfaction.
